Reliable Osteoporosis Assessment with Proven Ultrasound Technology

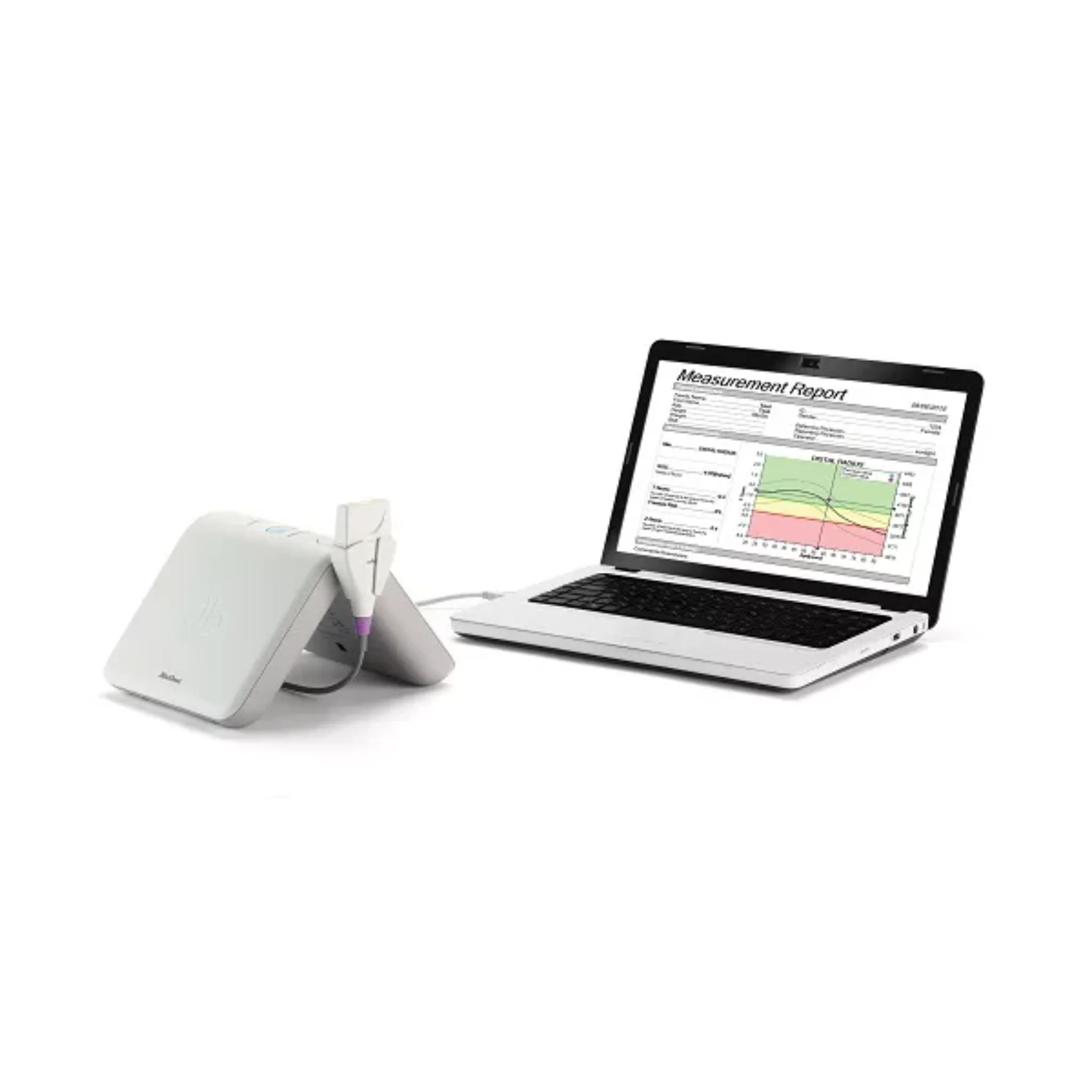

Sunlight MiniOmni™ is a compact, professional solution for early osteoporosis assessment, delivering accurate, non-invasive, and radiation-free bone density monitoring. Built for exceptional value, this ultra-lightweight and portable bone sonometer connects easily via USB to Windows PCs and laptops, making it ideal for physician offices, medical clinics, pharmacies, checkup centers, and retail health settings.

Powered by proven Sunlight Omnipath™ quantitative ultrasound technology, MiniOmni provides high-accuracy measurements, optional multi-site testing, and WHO-compliant T-score and Z-score results. Reports are generated within minutes with clear graphics, patient history, and easy interpretation. With no disposables, near-zero operating cost, and a convenient carry case, MiniOmni delivers professional diagnostics with unmatched affordability.

Features

Ultrasound-based osteoporosis screening for early risk detection
Designed to help close HEDIS OMW gaps in clinic or at-home settings
Portable bone density scanner for flexible point-of-care use
Weighs less than 2 lbs, ultra-lightweight and compact
Simple test performed by any trained operator
Suitable for clinics, offices, home visits, mobile screenings, and health fairs
Plug-and-play USB connection
Works with existing PC, laptop, or printer
Highly affordable system with fast return on investment
Low upfront cost
Zero cost of operation with no ongoing maintenance
No disposables required
No calibration or warm-up needed
Helps reduce referral costs for DEXA studies
More convenient than heel-type bone density devices
No need to undress, shoes can remain on
Ideal for immobile or limited-mobility patients
Real-time visual and audio feedback for accurate measurement

Specifications

Measurement
Measurement	Speed of Sound (SOS)
Technology	Ultrasound Omnipath® Axial Transmission
Probes	Proprietary multi-transducer probe family, center frequency 1.25 MHz
Precision & Accuracy	0.25% to 0.6% instrumental accuracy, depending on probe
Measurement Time	Approximately 1 minute per skeletal site
Controls & Interface
User Interface	Start/Stop measurement switch
Display	User PC
Interface	USB 1.0
Backup Platforms	User hard drive or other removable storage media on the user’s PC
Software & Compatibility
Operating System	Windows 7, Windows 8
Calibration
Calibration	Calibration free, daily System Quality Verification with phantom is recommended
Power
Power Supply	Medical grade power supply, 7.5V, 1.5A
Power Input	Rated steady state input consumption, max 0.4A
Adapter Rating	AC/DC adapters, Class I or Class II
Safety & Protection
Electric Shock Protection	Internally powered equipment, complies with requirements for Class I or Class II equipment
Applied Part	BF Type applied part
Ingress Protection	IPX0 (equipment), IPX1 (ultrasonic transducer)
Standards
Conformance	IEC 60601-1:2005, IEC 60601-1-2:2007
Physical
Dimensions	140 mm W × 223 mm H × 140 mm D (not including probe holder)
Weight	About 1 kg

What's Included

MiniOmni main unit
Software installation (per online link)
Licenses and registrations for 5 or 8 computers or installations (see options to add more)
User guide (book and PDF)
Carrying case (black)
Power supply cable into MiniOmni
Power cord into wall outlet (see accessories for battery option)
USB cable A-B, 1.8 m
Phantom bar for System Quality Verification
Hand rest (blue)
Skin marker (white)
Spring gauge to measure at radius
Ultrasonic gel (8.5 oz bottle)
